H-Frame Press
Aida-200Ton
Specifications
CAPACITY
200 TON
— OSE
200
STROKE LENGTH EOI
-
STROKE/MINUTE
15-30 SPM
SLIDE ADJUS
100 MM
DIE HEIGHT
700 MM
BOLSTER AREA (LR X FB)
2000 X 1300 MM
SLIDE AREA (LR X FB)
2000 X 1300 MM
MAIN MOTOR
22X 4KWxP
DIE CUSHION
-
QUANTITY PRES
-
Aida-300Ton - 150mm
Specifications
CAPACITY
300 TON
MODEL
PDA - 30H
STROKE LENGTH
150 MM
STROKE/MINUTE
40 - 100 SPM
SLIDE ADJUS
40
DIE HEIGHT
1200 MM
BOLSTER AREA (LR X FB)
1850 X 1100 MM
SLIDE AREA (LR X FB)
1850 X 1000 MM
MAIN MOTOR
37KW
DIE CUSHION
-
QUANTITY
1NO
Aida-300Ton - 400mm
Specifications
CAPACITY
300 TONH-FRAME
MODEL
SMX-II-L2-3000(2)
STROKE LENGTH
460 MM
STROKE/MINUTE
15 - 30 PPM
SLIDE ADIUS
200 MM
DIE HEIGHT
700 MM
BOLSTER AREA (LR X FB)
2150 X 1400 MM
SLIDE AREA (LR X FB)
2150 X 1250 MM
MAIN MOTOR
37KW
DIE CUSHION Ne
-
QUANTITY
-
Aida-300Ton - 500mm
Specifications
CAPACITY
300TON
MODEL
(OSE 300
STROKE LENGTH BOOB
-
STROKE/MINUTE
15-30 SPM
SLIDE ADIUS
100MM
DIE HEIGHT
-
BOLSTER AREA (LR X FB)
2200 1300 MM
SLIDE AREA (LR X FB)
2200 1300 MM
MAIN MOTOR
37X 4 KWaP
DIE CUSHION
-
QUANTITY
2NOS

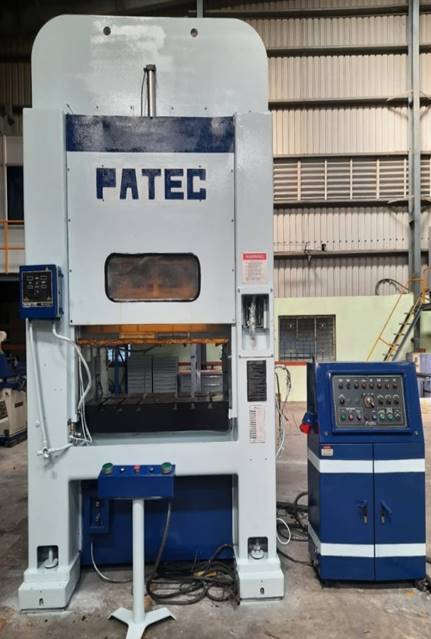

Patec-200Ton
Specifications
CAPACITY
200 TON
MODEL
PHL - 200S
STROKE LENGTH
120 MM
STROKE/MINUTE
40 - 100 SPM
SLIDE ADJUS
50 MM
DIE HEIGHT
400 MM
BOLSTER AREA (LR X FB)
1200 X 700 MM
SLIDE AREA (LR X FB)
1200 X 480 MM
MAIN MOTOR
30X4 KWxP
DIE CUSHION
-
QUANTITY
1NO
